USE:
For the control of pedestrians at many locations. This can be office buildings, banks, embassies, ports, airports, rail and metro stations to name but a few.
Average throughput up to 20 to 30 persons minimum per minute.

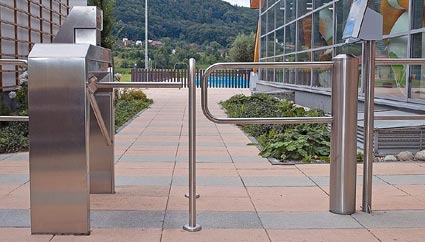

Durable access gates to match as illustrated.
SIZE:
Low level turnstiles can be supplied as single units or in multi unit banks.
Height of housing 1100mm
Width 320mm
Depth 1090 mm
Passage width 550mm
CONSTRUCTION:
Turnstile housing, containing controller of folded stainless steel sheet 1.5mm thick, type AISI 304
Bars of 40mm stainless steel fixed to hub and bearings
All non exposed surfaces zinc sprayed or painted
Lead in and gap closure railing panels of matching construction also available.
DRIVE:
Although a manual single directional model is available we offer low level turnstiles with bi-directional powered operation.
The drive is activated by lightly applied pressure onto the arms.
Arms turn 120º and automatically centre in home position.
Operating temperature for internal use +10º to +50ºC
Operating temperature for external use with built in heaters -25º to +50ºC
POWER SUPPLY:
12V DC or 24V AC
Back-up battery system is available if required for up to six hours continuous operation in case of power failure.
CONTROLS:
Latest version PLC controller located inside housing
Control function to client's choice but including:
- Controlled entry, free exit
- Controlled entry, controlled exit
- Card access system
- swipe/proximity/magnetic fixed into housing. We can supply customers own units and link to full security system.
- Biometric identification systems.
- Way leave lights fitted into housing.
- Local override control.
- Drop arm facility in case of fire or emergency.
- Remote control/monitoring/reporting/change of parameters via RS485/USB/Ethernet
FINISH
All exposed external surfaces of satin finished stainless steel.
INSTALLATION
Low level turnstiles bolt to finish ground level with flat surface with one cable access via conduit into housing.
|
