FENCE ENHANCEMENT SYSTEM TO VEHICLE IMPACT RATINGS

OVERVIEW:
This is a brand new product and is
strongly recommended as the most
effective way of achieving vehicle impact
resistance to new and existing fences.
What is of special significance is that
changes of direction, sloping ground,
curves, make no difference in the use of
This fence enhancement system. It is
also very easy to repair and replace after
an attack. It should also be noted from
the specification below that only shallow
foundations (400mm deep) are required.

USE:
To protect new or existing fences from vehicular attack using a system of posts which have been impact tested. Click here for link

SIZE:
Post stand 1m above ground. Distance between – maximum 1.2m gap size 100mm (facing) x 180mm deep.

CONSTRUCTION:
Special quality steel formed into rectangular section with below ground baffles for setting into concrete foundation. Posts with welded caps and with capability of accepting mesh filled fence panels above. Optionally the posts can be fitted with circular section stainless steel shroud with weathered top.

FINISH:
All steel surfaces blasted clean to Swedish S3 standards, coated with zinc rich paint plus high quality matt top coats colour to suit client’s requirements, generally yellow if high visibility is required or black or green if blending into background required.

INSTALLATION

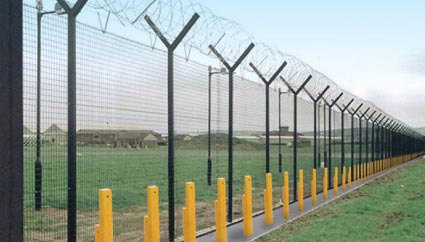

The posts (alternatively termed bollards) are set into a reinforced in-situ concrete foundation at 1.3m centres. Concrete foundation maximum 1m wide x 400mm deep. This may vary according to ground conditions. Reinforcement comprising Rebar type C16. Basket size maximum 875mm wide x 260 deep.

Fence enhancement posts (bollards) being tested to the highest PAS68 subsequently CWA 16221 and ASTM standards without distortion.
