USE:
For the control of pedestrians at many locations. This can be office buildings, banks, embassies,
ports, rail and metro stations and at airports for immigration control.
Average throughput up to 30 persons per minute.

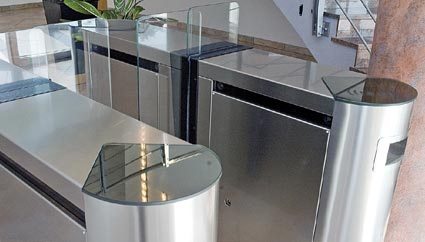

Durable access gates to match as illustrated.
SIZE
Low level passgates can be supplied in single or multiple units.
Height of housing 990mm
Width of housing for standard passage 320mm
Width of housing for wide passage i.e. disabled access 500mm
Depth of housing 1700mm
Width of passage standard version 520mm
Width of passage wide version 900mm
Height of glass doors standard version 1200mm
Height of glass doors security version 1800mm
CONSTRUCTION:
Passgate housing of folded stainless steel 1.5mm thick type AISI304 glass doors 8mm thick tempered safety glass
All non-exposed surfaces zinc sprayed.

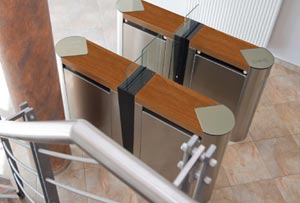

Alternative tops of wood, marble or selected stone available.
DRIVE
Glass doors operated by electromechanical drive unit.
Speed of opening (standard version): less than 1 second.
Operating temperature 0 to 50º
POWER SUPPLY
12V DC or 24V AC
Back-up battery system is available if required.
Manual operation is available as normal control system.
CONTROLS
Low level passgates are supplied with 7 cell detectors to prevent tailgating and ensure safe operation
Gates can be supplied as
- Normally fully open
- Normally closed
- Single or bi-directional operations
- Card access system - swipe/proximity/magnetic fixed into housing. We can suite customers own units and link to full security system.
- Biometric identification systems.
- Way leave lights fitted into housing.
- Local override control.
- Gates open automatically on fire alarm or panic button
- Remote control/monitoring/reporting/change of parameters via RS485/USB/Ethernet
FINISH
All exposed external surfaces of satin finished stainless steel unless
bespoke tops selected.
INSTALLATION
Low level passgates bolt to finish ground level with flat surface with one cable access via conduit into housing.
|
