RAZOR WIRE BARBED TAPE

OVERVIEW:
This product has virtually taken over from
standard twin strand barbed wire for
high security applications.
It is supplied in coil form of various
diameters and with alternative length of barbs.

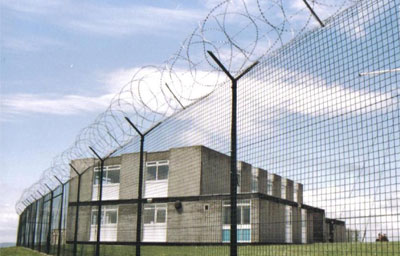

BTC can be used as a fence topping, a
separate entanglement fence or gate and
wall toppings. We only recommend
product made in accordance with all
recognised standards of wire and
galvanising.

razorwire_barbed


USE:
To prevent unauthorised entry by climbing.

SIZE

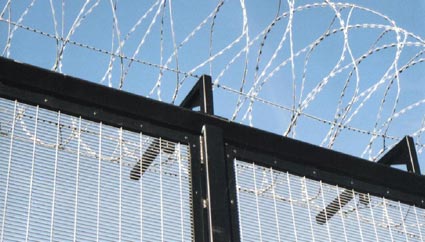

We recommend the BTC is supplied in what is termed as a clipped version - see photo above. This means the coils cannot be over-expanded. The following sizes are available:

Coil Diameter

No of Spirals

No of
Clips

Recommended length

305mm
450mm
600mm
730mm
980mm

33
54
54
54
54

3
3
3
5
5

4m
8m – 10m
8m – 10m
10m – 12m
12m – 15m

CONSTRUCTION
Centre wire 2.5mm diameter, high tensile (1500mPA) in galvanised finish. Barbs of 0.5mm thick galvanised steel strip at 42mm centres with length of barb 27mm.

FINISH
Standard hot dipped galvanised and supplied in coils. Stainless steel alternative available.

INSTALLATION
Fixed by clipping to fence or support wires. Safety gloves are essential for this process.
